KOSO NORTH AMERICAD2 Lcd Multifunction Meter Black
Rating:
(0)
- -5.1%

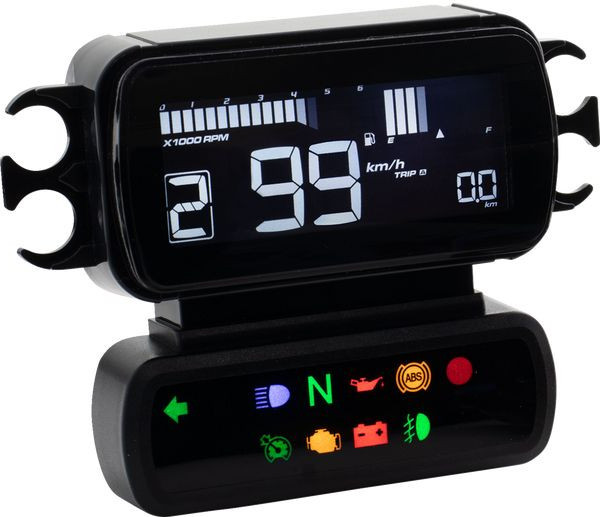

High quality plug & play meter that is equipped with an 8-color changeable LCD display
Designed to mount below cutout top handlebar clamp for a sleek look (handlebar riser kit with gauge cutout or gauge relocation kit may be required depending on application)
Features a tachometer/speedometer combination with a programmable shift light and includes gear indicator
Features vital reads such as engine temperature, battery voltage, tire pressure and a complete system of indicator lights to monitor vital signs on bike
Plugs directly into the stock harness and works directly with CANBUS system
Display range: 0-124 mph
Effective temperature range: -4°F-185°F (-20°C-85°C)
12VDC battery voltage
Measures 3-7/16” L x 1-1/16” W x 2-5/8” H
XL models may require purchase of separate fuel level sensor kit (OEM PART #6120008) for fuel meter to function properly.
Kit contains: 1 x LCD Meter, 1 x Meter adapter box and 1 x Zip tie (4.6 x 300mm)

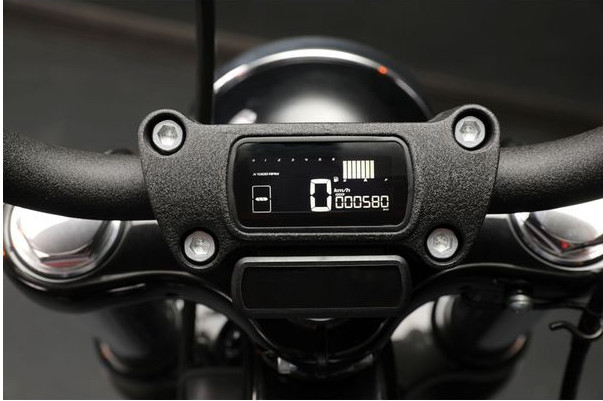

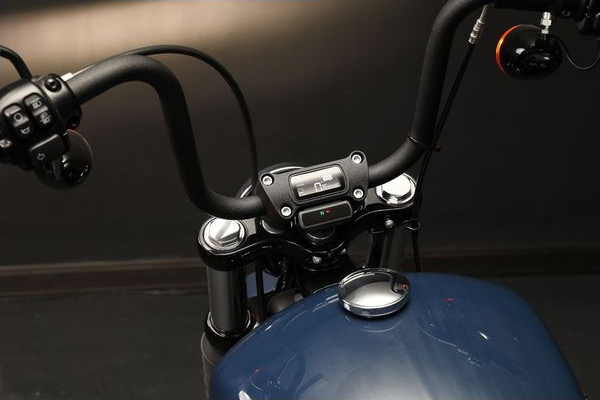

The installation images are for demonstration purposes only. The plate is not included.
Designed to mount below cutout top handlebar clamp for a sleek look (handlebar riser kit with gauge cutout or gauge relocation kit may be required depending on application)
Features a tachometer/speedometer combination with a programmable shift light and includes gear indicator
Features vital reads such as engine temperature, battery voltage, tire pressure and a complete system of indicator lights to monitor vital signs on bike
Plugs directly into the stock harness and works directly with CANBUS system
Display range: 0-124 mph
Effective temperature range: -4°F-185°F (-20°C-85°C)
12VDC battery voltage
Measures 3-7/16” L x 1-1/16” W x 2-5/8” H
XL models may require purchase of separate fuel level sensor kit (OEM PART #6120008) for fuel meter to function properly.
Kit contains: 1 x LCD Meter, 1 x Meter adapter box and 1 x Zip tie (4.6 x 300mm)
The installation images are for demonstration purposes only. The plate is not included.
- Width
- 27 Mm (1-1/16'')
- Type
- Multi-function Speedometer
- Length
- 88 Mm (3-7/16'')
Make | Model | Year |
---|---|---|
Harley Davidson | FXBB 1750 ABS | 2018 |
Harley Davidson | FXBB 1750 ABS | 2019 |
Harley Davidson | FXBB 1750 ABS | 2020 |
Harley Davidson | FXBR 1750 ABS | 2018 |
Harley Davidson | FXBR 1750 ABS | 2019 |
Harley Davidson | FXBBS 1868 | 2021 |
Harley Davidson | FXBBS 1868 ABS | 2021 |
Harley Davidson | FXBBS 1868 ABS | 2022 |
Harley Davidson | FXBBS 1868 ABS | 2023 |
Harley Davidson | FXBBS 1868 ABS | 2024 |
Harley Davidson | FXST 1750 | 2021 |
Harley Davidson | FXST 1750 ABS | 2020 |
Harley Davidson | FXST 1750 ABS | 2021 |
Harley Davidson | FXST 1750 ABS | 2022 |
