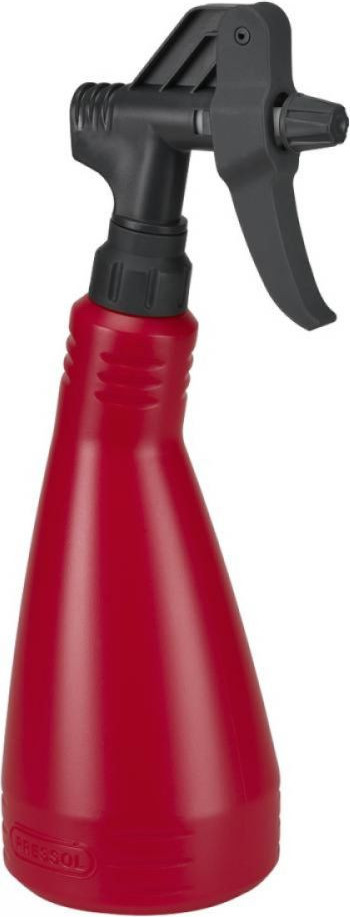

PRESSOLIndustrial Sprayer Double Acting Black, Red

Industrial sprayer 2014.1-750 ml


PE-red-SPK double acting


Specification


Atomizer head with double stroke and freely positionable


Flexible hose allows almost complete emptying at a working angle of 0°-180°


Special notes


Recommended for us with thin liquid media, such as lubricants, break cleaners and cleaners from the industrial and automotive industry areas, as long as the Material of the sprayer is resistant to these media


Use also in horizontal container position


Thoroughly flush the system with clean water after use


Stable


List of tested media see stability list


Technical data


Volume of container (ml): 750


Colour of container: red


Colour sprayhead: black


Spray volume per cycle (ml): 1,4


Spray angle: 50°


Reach at set spray angle of 50° (mm): 600


Reach at full jet (mm): 4500


Operating temperature area (°C): +5 / +30


Height (mm): 313


Base Ø (mm): 100


Weight (kg): 0,17


Material


Container (in contact with liquid): HDPE (high density polyethylene)


Pump (in contact with liquid): Special plastic


Seal (in contact with liquid): FKM


Suction hose (in contact with liquid): Special plastic


Pressure spring and ball (in contact with liquid): INOX


Adjusting nut (in contact with liquid): HDPE
