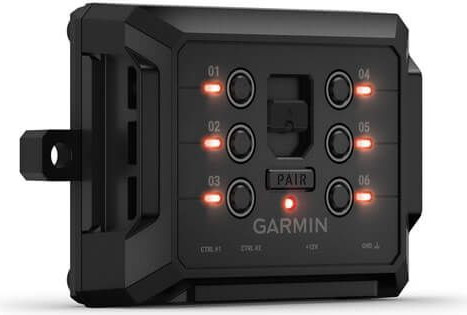

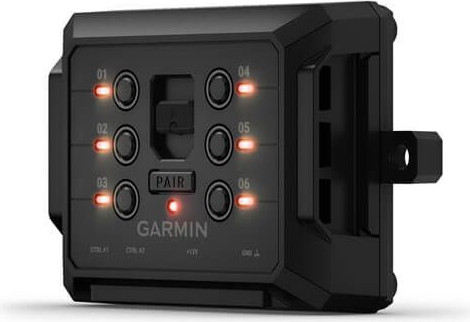

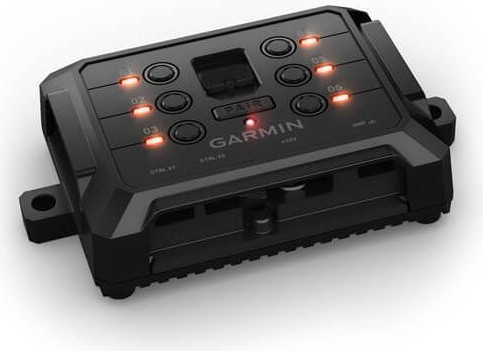

GarminPowerSwitch™ Digital Switch Box

WIRELESS SWITCH CONTROL

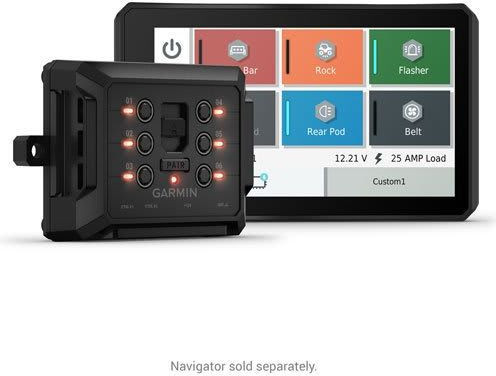

• The Garmin PowerSwitch digital switch box uses BLUETOOTH® wireless connectivity to program and operate your accessories from compatible1 Garmin navigators or smartphones.
MORE CONTROL

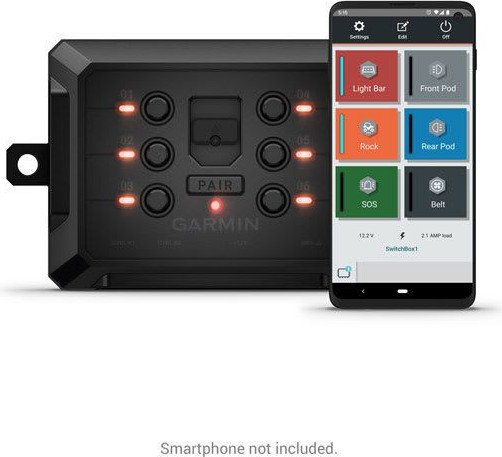

• Control up to four of your Garmin PowerSwitch devices from your compatible1 Garmin navigator or smartphone.
INSTALL MADE SIMPLE
• Hassle-free installation lets you connect up to six accessories to one Garmin PowerSwitch box. There’s no interference with your vehicle electronics and no need to cut holes in your dashboard or route wires through the firewall.
COMPACT FOR EASY MOUNTING

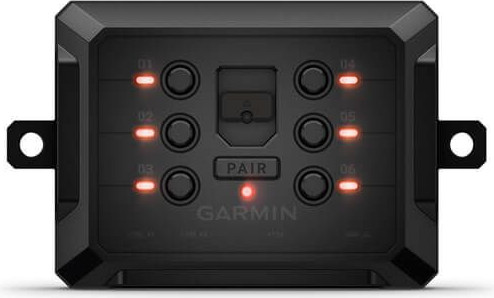

• The compact 5” x 3” x 1” form factor gives you plenty of flexible mounting options on all types of vehicles, ranging from side-by-sides, UTVs and ATVs to off-roading 4x4s and snowmobiles.
CUSTOMIZE SWITCHES
• Create custom virtual switch panels with labels, icons and channel groups on the display as well as controls for dimming and flashing of lighting systems. It’s the simple way to control light bars, rock lights and more.
AMPLE OUTLETS

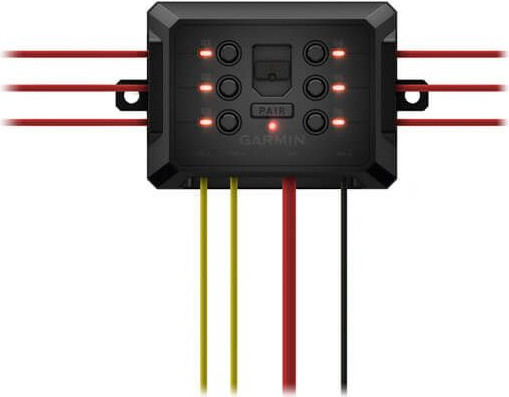

• With a total of six circuits rated at up to 30 amps each, you can power and control all types of 12-volt accessories from one Garmin PowerSwitch digital switch box.
CONTROL INPUTS
• Includes two control inputs that detect a signal from 3.3-volt to 18-volt that can be used to turn on the customizable outputs. For example, you can connect your vehicle ignition switch to a control input terminal to turn on accessories automatically each time you start your vehicle.
LIGHT IT UP
• The Garmin PowerSwitch system makes it easy to add all types of exterior lighting packages to your vehicle — everything from light bars and fog lights to emergency flashers and rear and rock lights.
SPECS.
General:
• PHYSICAL DIMENSIONS 4.9”W x 1.3”H x 3.0”D (12.5 x 3.2 x 7.5 cm)
• WEIGHT 283 g
• WATER RATING IPX7
Digital Switching Features

• NUMBER OF SWITCH OUTPUTS: 6
• MAX AMPS PER SWITCH OUTPUT: 30 amps
• MAX AMPS TOTAL: 100 amps
• NUMBER OF HARDWIRE INPUTS: 2
IN THE BOX:
• Garmin PowerSwitch
• Power cable
• Ground cable
• Terminals
• Documentation
