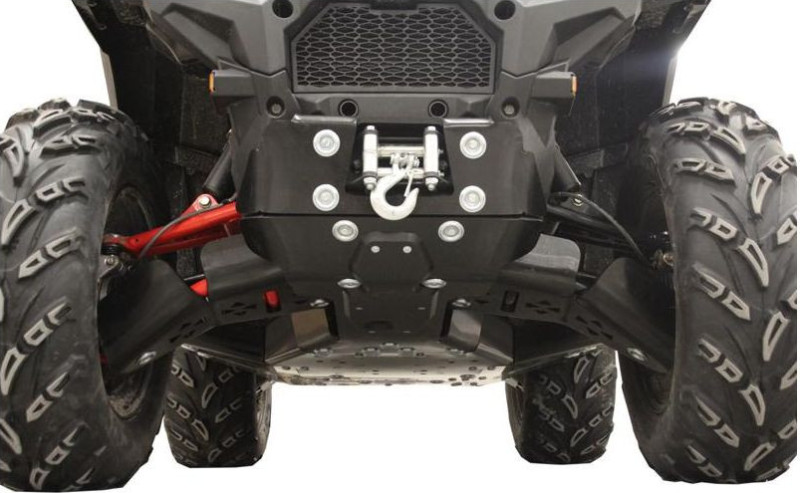

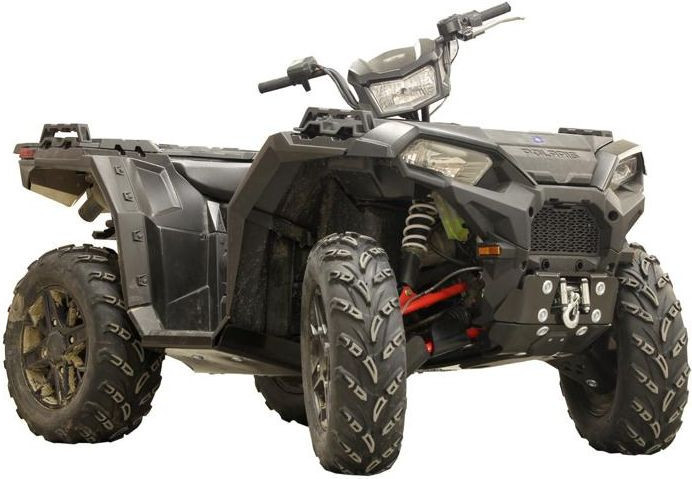

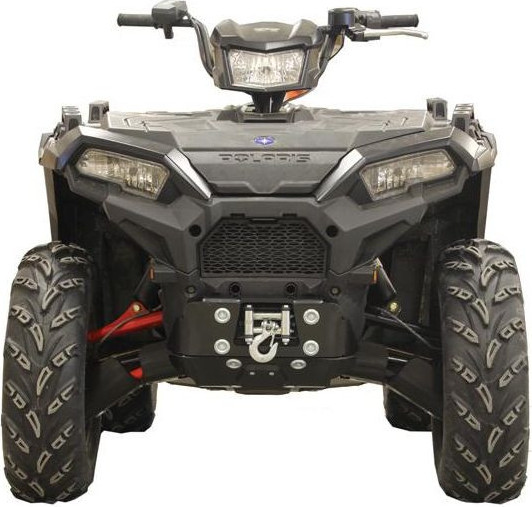

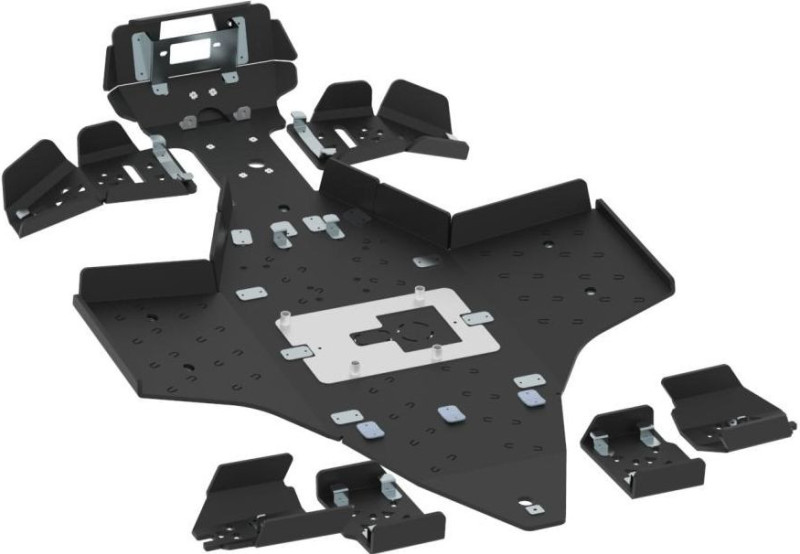

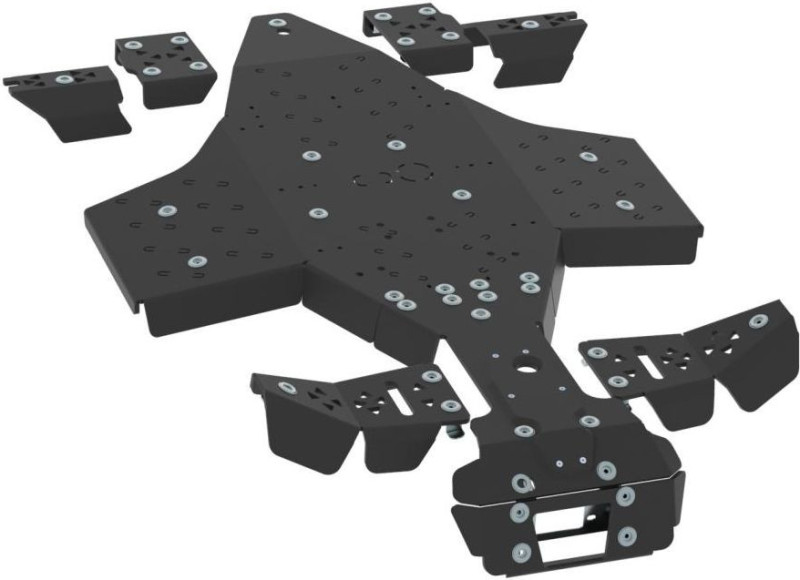

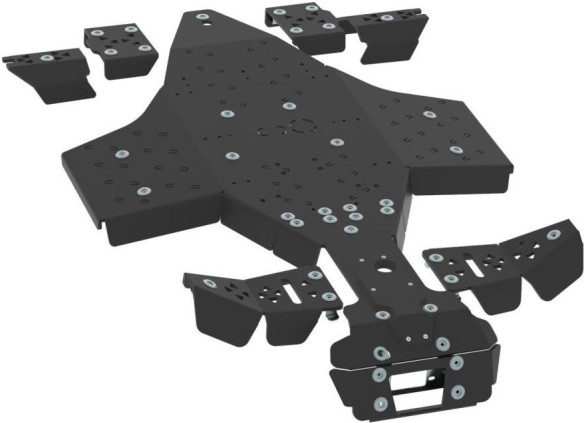

Iron BalticSkid plate full set (plastic) Polaris Sportsman XP 1000 (2017+)

Brand:IB
Make:Polaris
Model:Sportsman 1000 (2017+)
Material:Plastic HDPE
Thickness:10 mm
Weight:21.2 kg
Packed dimensions:910 x 640 x 200 mm
Heavy duty upper front part of the skid set. Installation of that upper part requires the original Polaris winch mounting bracket to be installed in prior skid plate installation!
Fits to Sportsman 1000 2017+ model year machines equipped with high clearance dual arched A-arms, including North American Sportsman 850 / 1000 Trail models 2020+ model year.
Front lower part of the skid plate must be removed in order to use the Polaris OE "Glacier III" snow plow system!

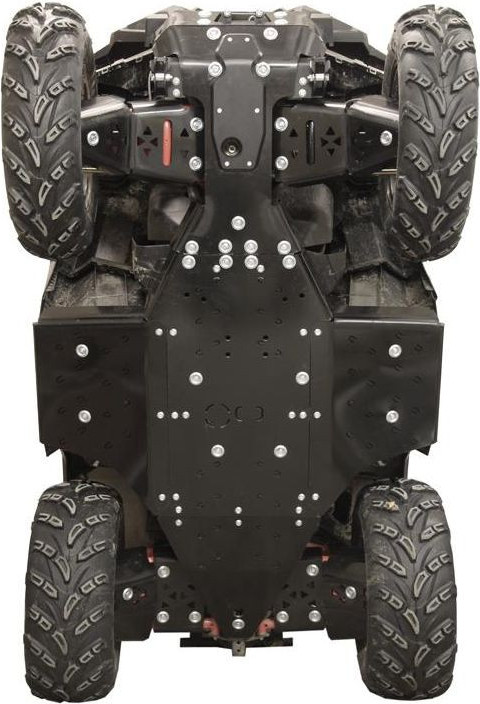

Protects whole bottom, front part and the A-arms.
Additional, bolted front part reinforcement plate.
Pre-cut sectors for finishing the optional rib shaped holes for mud draining.
Holes for IB Mid-mount adapter.
Holes for oil changing or 'pre-cut' sections for completing the holes for oil change.
All fastening parts and detailed, illustrated fitting instruction are enclosed.
Original tow loop is covered with skids, additional cut into skid plate front parts needed if want to use the loop.
Fits North American Sportsman 850 / 1000 Trail models 2020+ model year.
This may also fit US specs Sportsman 850 models with high clearance arms 2018+
